La nueva Leica M

Posted: 18/09/2012 by Agusti Pardo in Camaras, Leica, Noticias

Nikon M black front

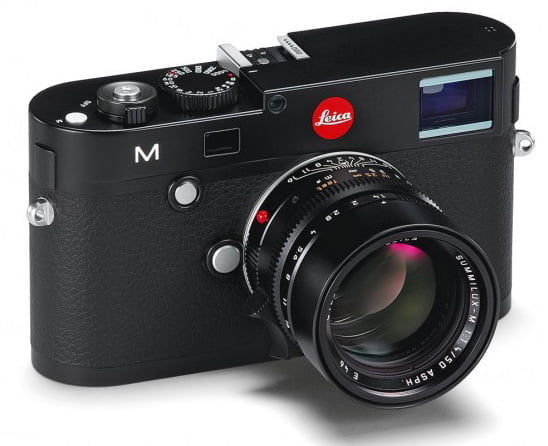

Leica M black

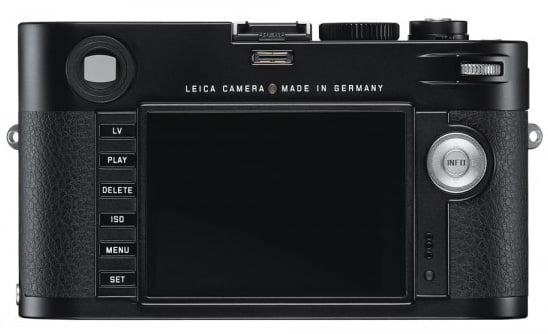

Leica M back

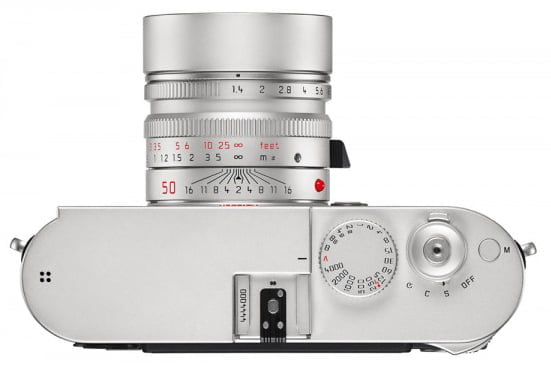

Leica M top



Leica presenta un hito revolucionario en la historia del sistema de telémetro Leica: la Leica M. Se trata de la primera cámara que implementa un sensor de imagen CMOS de nuevo diseño y que incorpora nuevas funciones como Live View y capacidad de grabación de vídeo en Full HD, lo que la convierte en el modelo más versátil de la historia de las cámaras Leica de telémetro, marcando nuevos estándares. Combina las numerosas ventajas de la innovadora tecnología digital con el sistema de telémetro, perfeccionado continuamente durante décadas. A la vez, es fiel a los valores legendarios del sistema M-System, a la vez que amplia las oportunidades ofrecidas por la fotografía de telémetro, y, por primera vez, ofrece compatibilidad con los objetivos Leica R, mediante un adaptador opcional. A partir de ahora, para indicar el valor intrínseco del sistema M, los nuevos modelos ya no incorporan un sufijo numérico en su denominación.



Características clave:



  • Cámara de sistema “full frame”
  • Nueva denominación Leica M sin número en el sufijo
  • Compatible con los objetivos Leica M, que proporcionan los mejores resultados en cuanto a calidad de imagen
  • Visor brillante con preciso sistema de enfoque mediante el telémetro Leica
  • Novedad: impresionante calidad de imagen gracias al sensor LEICA MAX CMOS de nuevo desarrollo de 24 MP
  • Novedad: Live View
  • Novedad: compatible con objetivos Leica R con el adaptador opcional Leica R Adapter M
  • Novedad: enfoque de alta precisión gracias a las ayudas al enfoque disponibles en Live View, como el ‘focus peaking’ (resalte del enfoque)
  • Novedad: Visor electrónico opcional
  • Nuevo: captura de videos en Full HD
  • Novedad: adaptador con micrófono estéreo externo
  • Novedad: Empuñadura multifuncional opcional con GPS, SCA y USB para control remoto
  • Nueva pantalla LCD de 3 pulgadas y alta resolución (920.000 puntos) con cobertura Corning Gorilla Glass resistente a los arañazos
  • Soporte para tarjetas de memoria SD, SDHC y SDXC
  • Robusto cuerpo metálico sellado contra el polvo y las salpicaduras de agua
  • Licencia de software Adobe Photoshop Lightroom disponible para descargar de la página web de Leica.





[vimeo vimeo.com/49464083]


[vimeo vimeo.com/49544593]



Datos técnicos

Descripción general
Nombre de producto: LEICA M (Typ 240), acabado en negro LEICA M (Typ 240), acabado en cromado plateado
Tipo de cámara: Cámara de sistema con telémetro y Live View para fotografía y vídeo
Montura para objetivos: Bayoneta Leica M con sensor para codificación 6-bit
Sistema de objetivos: Objetivos Leica M, objetivos Leica R con adaptador opcional Leica R-Adapter M
Parte superior: En metal con zona para reposo del pulgar integrada
Material: Metal en aleación de magnesio con cobertura en piel sintética. Parte superior e inferior en metal
Sensor de imagen: Sensor LEICA MAX 24 MP CMOS
Número de pixels efectivos: 24 Millones de Pixels
Gama de sensibilidades: ISO 200 – ISO 6400, disponible Pull 100, Auto ISO
Procesador de imagen: Leica Maestro®
Visor electrónico: Opcional, se puede usar para Live View y revisión de imágenes
Monitor LCD: TFT de 3” con 920.000 Pixels, con cobertura resistente a los arañazos (Corning®Gorilla®Glass)
Obturador: Plano focal
Velocidad de obturación: 1/4000s – 60s (en Bulb), sincronización de flash 1/180s
Velocidad en ráfaga: 3fps
Autodispardor: 2s / 12s
Soporte de almacenamiento : Tarjetas de memoria SD / SDHC / SDXC




Funciones de imagen
Formato de archivo de imagen: DNG™ (RAW sin comprimir o con compresión sin pérdida), JPEG
Tamaño de archivo: DNG aprox. 20 Mbyte – aprox. 30 Mbyte (comprimido)/ 48,2 MByte (sin compresión), JPEG: depende de resolución y contenido
Resoluciones JPG disponibles: 5952px*3976px (24 MP), 4256px*2832px (12 MP)/ 2976px*1984px (6MP) / 1600px*1080px (1,7MP)
Espacio de color: sRGB / Adobe®RGB
Balance de blancos: Auto / día / nubleado / sombra / tungsteno / fluorescente cálido /fluorescente frio / flash / manual (carta gris) / Kelvin 2000-13100
Otras funciones: Modos de película, saturación, contraste, nitidez




Grabación de vídeo
Formato: Motion JPG, formato Quicktime (mov)
Resolución: 1080p, 720p, 640*480 (VGA)
Velocidad: 25 fps, 24 fps, 30 fps (solo VGA)
Micrófono: Mono, adaptador opcional con micrófono estéreo disponible
Grabación de audio: Ajuste automático del nivel, ajuste de nivel manual (disponible durante la grabación), predefinido concierto




Control de exposición
Medición de exposición: En modo de visor clásico: medición a través del objetivo (TTL), ponderada al centro. En Live View y modo de visor avanzado: medición a través del objetivo (TTL), ponderada al centro, puntual o multiárea. Ponderada al centro TTL para exposición de flash con unidades de flash conformes al estándar SCA-3000/2.
Ajuste de exposición: Ajuste de velocidad de obturación manual con dial directo, modo A con dial directo
Modos de exposición: Modo prioridad de apertura (modo A), exposición manual (modo M)
Compensación de exposición: -3 EV a +3 EV en pasos de 1/3
Bracketing de exposición : 3/5 imágenes, en pasos de 0.5 / 1 / 2 / 3




Control de exposición del flash
Medición de exposición del flash: Control con medición TTL ponderada al centro con pre-flash (con adaptador SCA-3501/3502, o unidad de flash estándar SCA-3000 como los Leica SF 24D/Leica SF 58).
Zapata: Compatible SCA-3502 con contacto central
Sincronización del flash: Opcional a primera o segunda cortinilla
Velocidad sincronización del flash: 1/180s




Visor / enfoque
Métodos de enfoque: Enfoque manual con telémetro óptico, Live View, 100% Live View Zoom, Live View focus peaking (resalte del enfoque)
Visor óptico: Amplio visor de telémetro con líneas brillantes de encuadre con compensación automática de paralaje.
Corrección opcional visor óptico: Lentes correctoras opcionales entre -3 a +3 dioptrías
Aumento del visor óptico: 0,68x
Telémetro: Telémetro con imagen partida o superpuesta en la parte central del visor




Otros
Tiempo de arranque:<1s
Alimentación:Batería de litio ion (incluida), 7.4V, 1800 mAh
Perfiles de usuario:4 perfiles exportables
Limpieza del sensor:Detección del polvo, función de limpieza manual
Rosca para trípode:Rosca metálica A 1/4 (1/4″) DIN en base inferior
Dimensiones:aprox. 139 x 42 x 80 mm
Peso:680 g
Temperatura de funcionamiento:0°C – 40°C
Idiomas del menú Inglés, alemán, francés, italiano, español, ruso, japonés, chino tradicional, chino simplificado
Accesorios incluidos Batería, cargador, correa de transporte, tapa de cuerpo
Licencias de software: Adobe® Lightroom® para descarga desde la web de Leica
Nuevos accesorios opcionales: Visor electrónico (EVF-2), Empuñadura multifuncional M, empuadura M, juego adaptador SCA para empuñadura multifuncional M, adaptador AC para empuñadura multifuncional M, anillos para dedos para empuñadura multifuncional M en tallas S / M / L, juego adaptador de micrófono Leica, adaptador Leica M-Adapter R, estuche de uso rápido M, batería de litio ion BP-SCL2, cargador de batería BC-SCL2




Nota de prensa

The perfection of digital rangefinder technology

Solms, Germany (September 17, 2012,) – Leica Camera presents a groundbreaking milestone in the nearly 60 year history of the Leica rangefinder system: The Leica M. Setting entirely new standards, the Leica M unites the ultimate in rangefinder precision with cutting edge digital technology. As the first camera to implement a newly designed CMOS image sensor and to feature additional focusing methods and functions such as Live View and Full HD video capability, it is the most versatile Leica rangefinder model ever. Remaining true to the legendary values of the M-System, the Leica M not only provides the advantages of rangefinder photography, but also for the first time, offers compatibility with Leica R legacy lenses. As with every innovation and development since the flagship line’s inception, the Leica M was created to capture fleeting moments of time and transform them into living history.



The Leica M also marks the beginning of a new era in the Leica product naming policy. In future, Leica M and S model names will omit the number suffix to emphasize the enduring and long-term significance of the respective systems.

In every respect, the new Leica M is the most innovative and versatile model the modern M-System has ever created. Looking to the future, the Leica M is the first in a long line of Leica rangefinder cameras to feature a completely new development in sensor technology; the Leica Max CMOS image sensor. This 24 MP, full 35 mm format sensor was designed and constructed in collaboration with CMOSIS especially for the camera and its use with M- and R-Lenses. This new development successfully transfers the characteristic advantages of CCD sensors, such as natural and brilliant color rendition and impressive reproduction of details, to a CMOS sensor.

In combination with the high-performance Leica Maestro processor that is also employed in Leica S cameras, this new full format sensor guarantees maximum imaging quality and speed. Now, all elements in the image creation chain, from the lens to the image file, are under complete control of the Leica engineers. This guarantees the ultimate in imaging performance and quality. An additional highlight is the low power consumption of the components that, in conjunction with the particularly high capacity of the battery, ensures outstanding performance over a long period of use.

In 1954, the launch of the M-System opened new horizons in reportage and artistic photography. Now at the dawn of a new era in the system’s technology, the Leica M offers a multitude of new features. The first of these are Live View and Live View Focus. Image composition can now take place in real time with the view of the subject through the lens. The sharpness, exposure and color content of images can now be precisely assessed on the camera’s large, 3-inch, high-resolution monitor screen with 920,000 pixels. The glass covering plate of the monitor screen is manufactured from particularly tough and scratch-resistant Corning®Gorilla®Glass. The new Live View function allows photographers to have access to entirely new opportunities that, in combination with the outstanding performance of Leica M- and R-Lenses, go far beyond the classical capabilities of rangefinder photography. This applies particularly to macro and telephoto photography, but also allows even more discreet shooting. In combination with M- and R-Lenses, the camera’s new 1080p Full HD video capability also opens up further opportunities to record memories as they happen.

Ever in pursuit of capturing Henri Cartier-Bresson’s “Decisive Moment,” the Leica M offers two additional focusing methods that can be activated quickly and easily with the new focus button. M-Photographers now have even more options for capturing outstandingly sharp images. The new ‘Live View Zoom’ option enables up to 10 x magnification for precise assessment of the sharpness of subject details or the close focusing limit. The second aid to focusing is ‘Live View Focus Peaking’. Here, contours in the subject are automatically displayed as red lines to allow simple and convenient focus assessment. Focusing precision can be assessed on the basis of the intensity of the lines displayed.

The Leica M’s features are optimally combined with the typical values of the Leica rangefinder system and guarantee the accustomed dependability of the Leica M in all photographic situations, from available light photography to discreet and aesthetic fine-art image composition. In line with the principles of the M-Philosophy, all functions and features are designed and constructed for absolute robustness and a long working life. The top deck and the base plate of the Leica M are machined from solid brass blanks and the full-metal chassis is a completely self-contained diecast element manufactured from high-strength magnesium alloy. Special rubber seals protect the camera body against dust, spray and moisture.

The new rangefinder camera is also a typical M due to its intuitive handling concept with direct manual setting options and fast access to functions. The enhanced layout and particular user-friendliness of the menu interface guarantees a clear and uncomplicated overview of all camera settings at all times.
Dedicated button controls have been provided for the Live View and new focusing functions. Live View Zoom and Live View Focus Peaking can be selected with the new focus button on the front of the camera. User profiles can be programmed with any camera and shooting settings, stored under an arbitrary name. They can be accessed quickly whenever required for particular situations and can now also be saved to an SD memory card. For increased comfort in use and harkening to the film advance lever of Leica film cameras, the Leica M now provides an ergonomically formed thumb rest with an integrated setting dial at the top right on the back of the top deck. This ensures that the camera can be held securely in even the most demanding situations.

A wide range of optional accessories is also available for the new Leica M. A particular highlight of the range is a new Leica R-Adapter M that allows almost all R-Lenses ever built to be mounted on the camera. The use of Leica R-System lenses now opens up vast new possibilities for zoom, telephoto and macro photography.

Further accessories are the Leica EVF2, Visoflex electronic viewfinder and a multifunctional handgrip-M with an integrated GPS module that, in combination with optional finger loops in various sizes (S, M and L), helps to ensure safe and steady handling of the camera and lens system. The range also includes a Leica Microphone Adapter set for perfect sound with video recordings.

The Leica M will be available from Leica dealers, including the Leica Store Washington DC, in early 2013 in a choice of black paint or silver chrome finish.
